PRODUCT DESCRIPTION

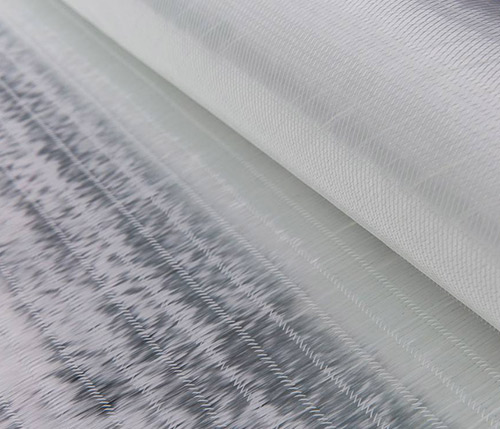

Triaxial Fabrics are knitted of E-glass roving which are uniformly distributed in tree-axis direction ( 0°/90°、±45° ) or are made into combo mat by chopped strands, which widely used in Boating and Wind Power, sporting appliance, aerospace( rocket、airplane), etc.
FEATURES AND BENEFITS
Excellent compatibility with EP
Without white yarn after consolidation
Outstanding compatible with mould
Excellent tensile strength
| Fiberglass Multiaxial Fabric-Triaxial |
| Specification | Mass (g/m2) | | Compatible Resin |
| 0° Roving Direction | 90° Roving Direction | +45° Roving Direction | -45° Roving Direction | Chooped Strand |
| E-MT450 | 145 | — | 150 | 150 | — | UP or EP |
| E-MT600 | 284 | — | 153 | 153 | — | UP or EP |
| E-MT800 | 284 | — | 267 | 267 | — | UP or EP |
| E-MT1200 | 567 | — | 301 | 301 | — | UP or EP |
| E-MH450 | — | 314 | 68 | 68 | — | UP or EP |
| E-MH750 | — | 341.5 | 202 | 202 | — | UP or EP |
| E-MH1050 | — | 614 | 217 | 217 | — | UP or EP |
| E-MH1200 | — | 390 | 401 | 401 | — | UP or EP |
