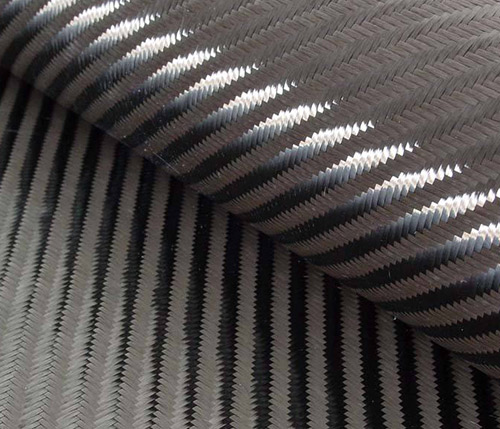

Carbon-fiber Woven Fabric

PRODUCT DESCRIPTION

Carbon-fiber Woven Fabric is produced fromhigh strength Carbon-fiber with special formula,which is mainly applied in plane body, plane tail, and automotive engineer andcanoeing etc.

FEATURES AND BENEFITS

High Temperature Resistance, anti-wear and anti-seismic property

Low weight and easiness to operate

High tensile strength and high modulus

Soft surface and easiness to cut

Excellentcompatible with epoxy resin

Environmentfriendly and pollution-free

Carbon-fiber Woven Fabric
Spec.	Mass （g/m2)	Thickness (mm)	Fiber Type		Fiber Count（ends/cm)		Woven Structure	Elogation at Break (%)
Spec.	Mass （g/m2)	Thickness (mm)	Warp	Weft	Warp	Weft	Woven Structure	Elogation at Break (%)
CWP132	132	0.17	1K	1K	10.5	10.5	Plain	≥1.7
CWP200	200	0.25	3K	3K	5	5	Plain	≥1.7
CWUD200	200	0.25	12K	Glass Yarn	2.4	1.9	UD	≥1.7
CWT280	280	0.36	3K	3K	7	7	Twill	≥1.5
CWUD300	300	0.36	12K	Glass Yarn	3.6	1.9	UD	≥1.5
CWP400	400	0.42	6K	6K	5	5	Plain	≥1.5
CWT400	400	0.42	6K	6K	5	5	Twill	≥1.5
CWP640	640	0.64	12K	12K	4	4	Plain	≥1.5
